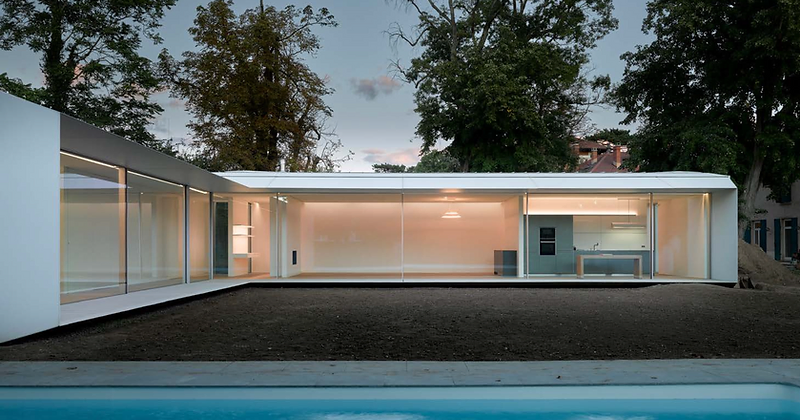

MFP18-H40 — 18 mm sightline minimal-frame sliding doors
All systemsMFP18 · MFP18

MFP18-H40

Six metres tall. Eighteen millimetres wide.

MFP18-H40 emerges as a disruptive series, challenging conventions with an innovative technological approach. Created to meet the unique demands of luxury segments, this multifunctional HYWGtec system excels in adverse weather conditions. Offering a unique peripheral view with just 18mm of aluminum sightline, the MFP18-H40 system is more than a technical solution – it is a statement of elegance in every project. Designed for extraordinary mechanical strength and strict compliance architectural experience. Choose MFP18-H40 for a perfect balance between performance and aesthetics in every project.

Sightline
18 mm
Max panel
18 m²
Glazing
38 mm double
Technical Specification
Performance
Thermal transmittance (referential)Down to 1.26W/m²K
Air permeabilityUp to Class 4
Resistance to wind loadUp to Class A3
Water tightnessUp to Class 8A
Acoustic performance37 (-1; -2; 0; -3)dB
Cycles
Resistance to repeated opening and closing37,500 cycles
Determination of the operating forces of windows
Commence openingClass 1
Commence closingClass 1
Engage hardwareClass 2
Features
Alarm and air conditioner sensors
Electromagnetic lock
Frame integrated handles
Multipoint lock
Wall integrated and weathertightness lock box system
Concealed bearings
18 mm perimeter view
Smallest central mullion in the world18 mmPatented
Engineering Highlights
  • →18 mm sightline with panels up to 6 m tall and 18 m²
  • →38 mm double glazing for increased thermal and acoustic performance
  • →Integrated stainless-steel gutter and drainage
  • →Multi-point locking system concealed in the frame
  • →Optional motorised opening and smart controls
  • →Invisible frame reduces to 8 mm once embedded
Gallery

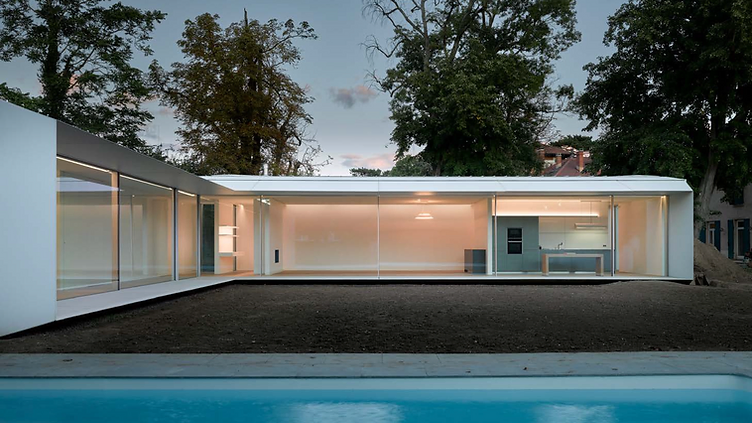

MFP18-H40 sliding doors installed in a minimal-frame opening

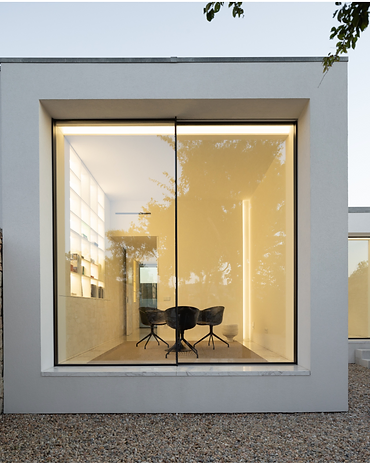

Minimal-frame glazing detail — MFP18 sliding door system

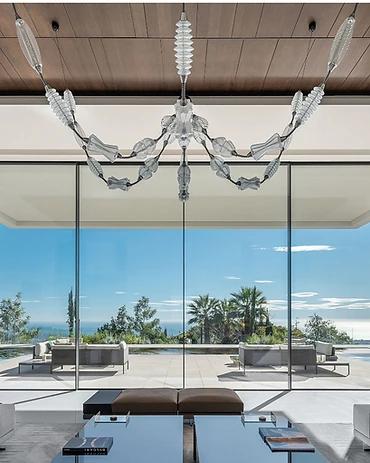

Minimal-frame glazing detail — MFP18 sliding door system

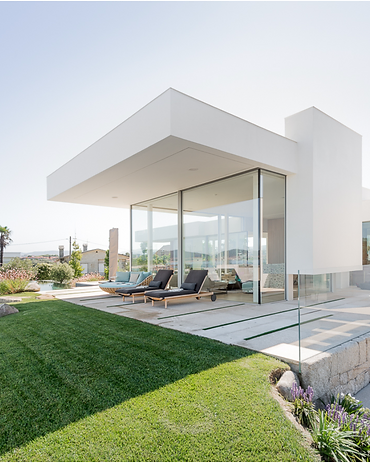

Minimal-frame glazing detail — MFP18 sliding door system
Configuration options

Built around your opening.

Best for: Large architectural openings, tall glazing and exposed sites.

Mono / Bi / Tri / Quad + rails
Pillarless corner module
Pocket door module
Unlimited rails
Motorised open/close
Yes
System features

Features of the system.

Max. height 6,000 mm
Max. width custom
Max. glazing area 18 m²
Max. weight 1,000 kg/sash
Central opening
Glass thickness 38 mm
Integrated ceiling
Integrated floor
SVD — securitised ventilation device
Corner opening
Pocket
Multiple sash configuration
Fly screen option available
Motorisation available

More from MFP18

MFP18-H30 — MFP18 minimal-frame sliding doors, 18 mm sightline

MFP18-H30

View system
MFP18-H50 — MFP18 minimal-frame sliding doors, 18 mm sightline

MFP18-H50

View system

Specify MFP18-H40

Send us your project details and drawings. We'll return a technical specification and quotation.
