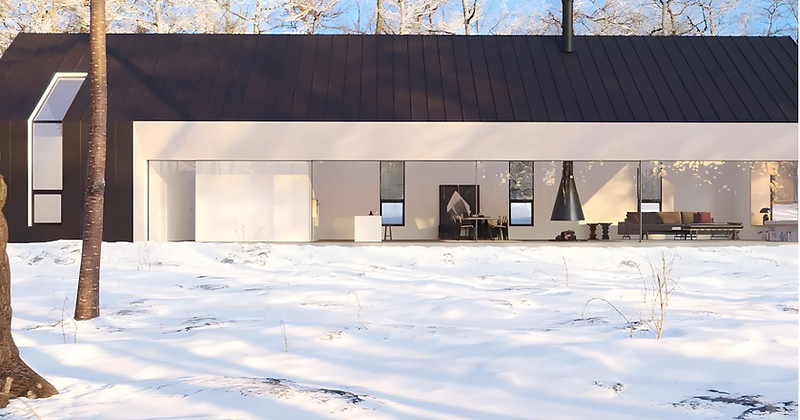

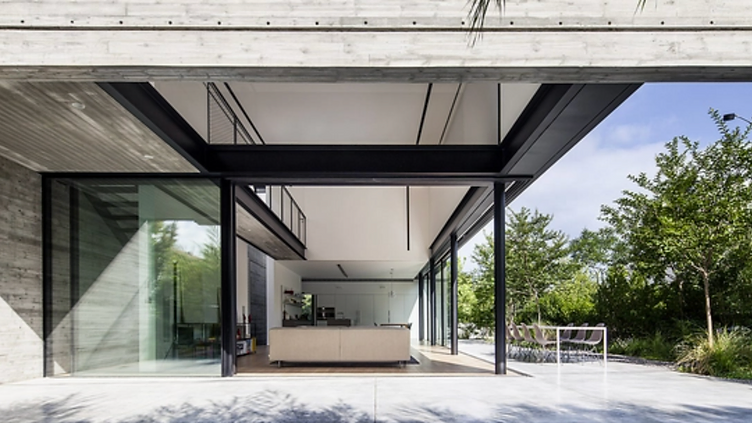

The Vitrocsa V56 range offers infinite glazing surfaces using 56 mm thick double or triple glazing. This range represents an evolution of our current sliding windows. The Vitrocsa V56 window has been developed, keeping the same mechanical characteristics of the Vitrocsa systems which have proven their worth for nearly 30 years.
- Sightline
- 22 mm
- Max panel
- < 20 m²
- Glazing
- 56 mm
- →Infinite glazing surfaces with 56 mm double or triple glazing
- →22 mm vertical connection, reinforced for very windy or high-altitude sites

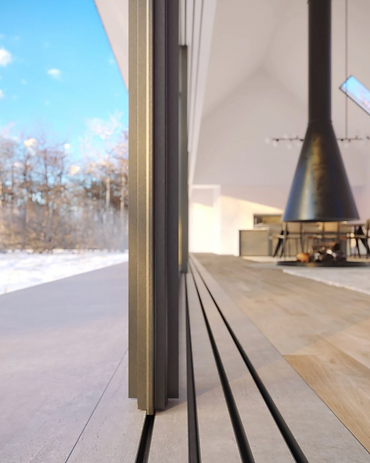

- →Rails and frames embedded and concealed in the floor, wall and ceiling
- →Frame just 172 mm wide for a birail
- →Class 4 air, Class 9A water and Class B5 wind performance
- →Optimised heat retention with fibreglass towers
- →Saline treatment specially adapted for coastal projects
- →Same mechanical characteristics proven for nearly 30 years
Key Features
Invisible Frame With One or Two Tracks

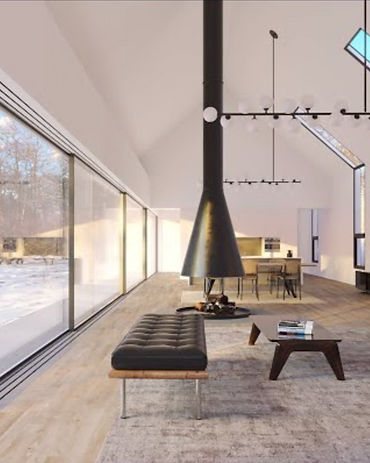

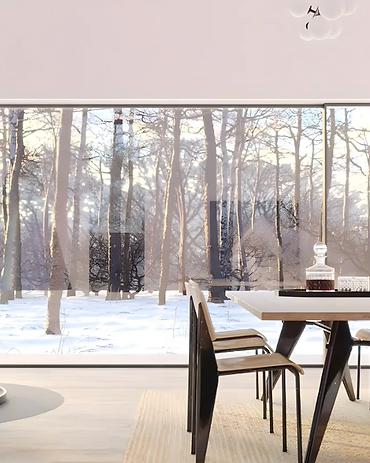

This configuration removes the architectural threshold between interior and exterior entirely. The frame is concealed beneath the finished floor, leaving only the glass visible. Double or triple glazing from 32 to 56 mm supports large sliding panels with surfaces of up to 20 m², creating a continuous visual and spatial connection.
Window Panels Pocket
The pocket solution allows one or more sliding panels to disappear completely into a dedicated wall cavity. When open, the glass leaves no visual presence, freeing the full width of the opening. This approach reinforces architectural purity while delivering a fully open façade without compromising the clean alignment of walls and finishes.
Open Angle
The open angle solution eliminates the corner jamb, allowing two sliding façades to meet without a vertical interruption. All rail configurations are possible, enabling full corner openings with uninterrupted views. This system enhances spatial flow and reinforces the sense of openness by removing structural visual barriers at the corner.
Mosquito Net
Several discreet solutions address insect protection without affecting the minimalist appearance of the system. An additional rail integrates a mosquito net directly into the sliding configuration, or a folding canvas is concealed within the vertical jamb. Coverage of up to 80 cm is achieved while preserving clean lines and ease of use.
Performance
- Air permeability (EN 1026 / EN 12207)Class 4
- Water permeability (EN 1027 / EN 12208)Class 9A
- Wind resistance (EN 12211 / EN 12210)Class B5
- Repeated opening/closing (EN 1191 / EN 12400)Class 320,000 cycles
- Resistance to a vertical load (EN 14608 / EN 13115)Class 3600 N
- V56 fixed-sliding, tested in an accredited laboratory (Swiss Testing Service number STS 317)
Glazing
- Double or triple glazing56mm
Rails + frames
- Embedded and concealed in the floor, wall and ceiling
- Frame width, birail172mm
- Frame width, mono80 + 12 sealmm
- Saline treatment specially adapted for coastal projects
Vertical connection
- Vertical connection22mm
- Reinforced for very windy locations or installation at high altitudes
- Optimised heat retention with fibreglass towers
Closure mechanism
- 2-point closure button
- Electric closure
- Alarms
Options
- Standard sliding
- Open angle
- Invisible frame with 2 grooves
- Motorisation
- Inner/outer incline
Built around your opening.
Best for: The largest openings and landmark architecture.
