Minimalist sliding system with thermal break that provides maximum brightness with the minimum visible aluminium section. It features an elegant design with a central junction of only 20 mm and offers the possibility of concealing the frame around the perimeter. Central junction locking option that allows the sashes to be hidden within the frame from a front view. Option of concealed locking that facilitates the crossing of the sashes.
- Sightline
- 20 mm
- Max panel
- 7.5 m²
- Glazing
- 26–30 mm
Technical Specification
Features
Thermal transmittanceUw ≥ 1.3W/m²K
Acoustic insulationRw up to 41dB
Air permeabilityClass 4
Water tightnessClass 7A
Wind resistanceClass C5
Reference test AEV 1.23 × 1.55 m / 1 sash + 1 fixed

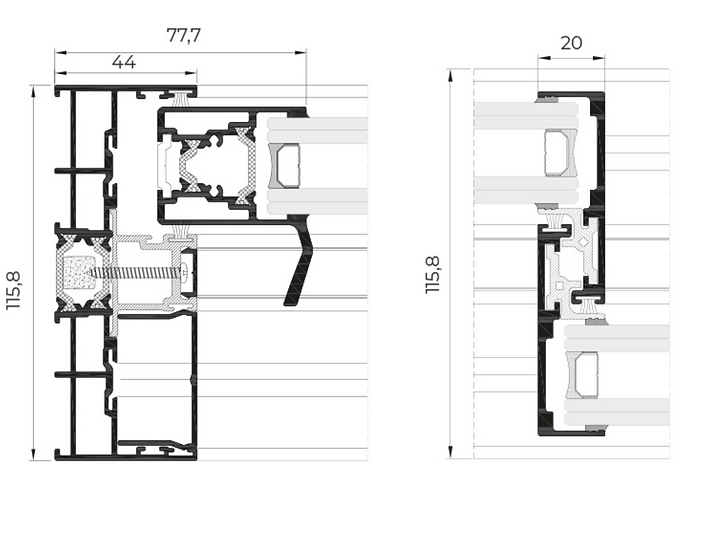

Sections
Frame116 / 182mm triple track
Sash37mm
Polyamide strip length16 / 24mm
Profile thicknessDoor 1.7mm
GlazingMax. 30 / Min. 26mm
Maximum sash width (L)2,500mm
Maximum sash height (H)3,000mm
Maximum sash weight320kg
Engineering Highlights
- →Central junction of only 20 mm
- →Frame can be concealed around the perimeter
- →Central junction locking hides sashes within the frame from the front
- →90° corner junctions without a mullion
- →Pocket system available
- →Excellent weather performance — Class C5 wind resistance

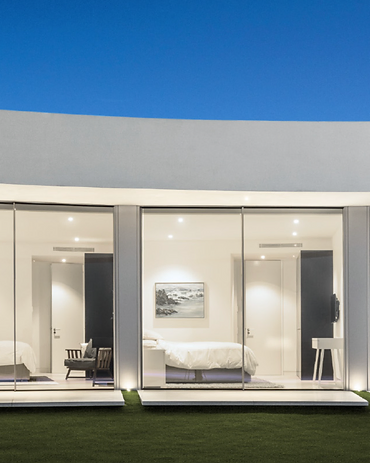

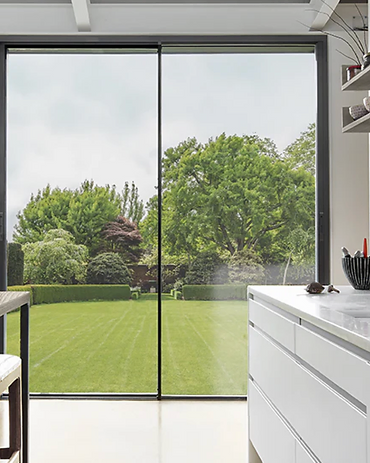

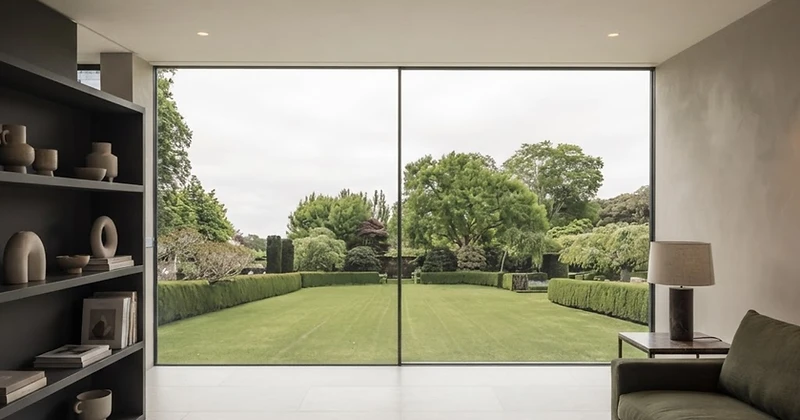

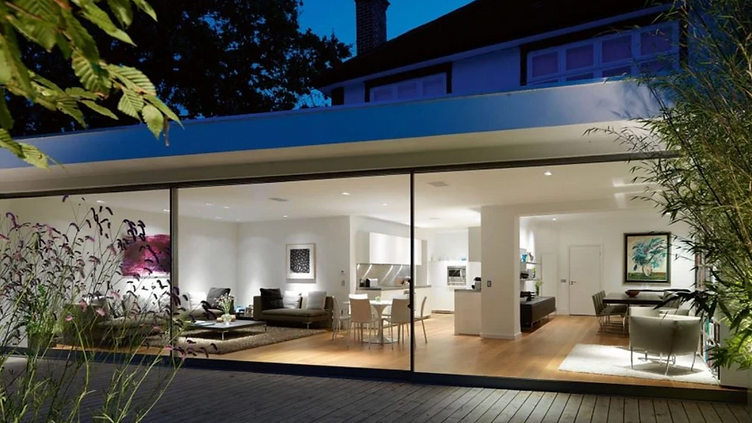

Gallery

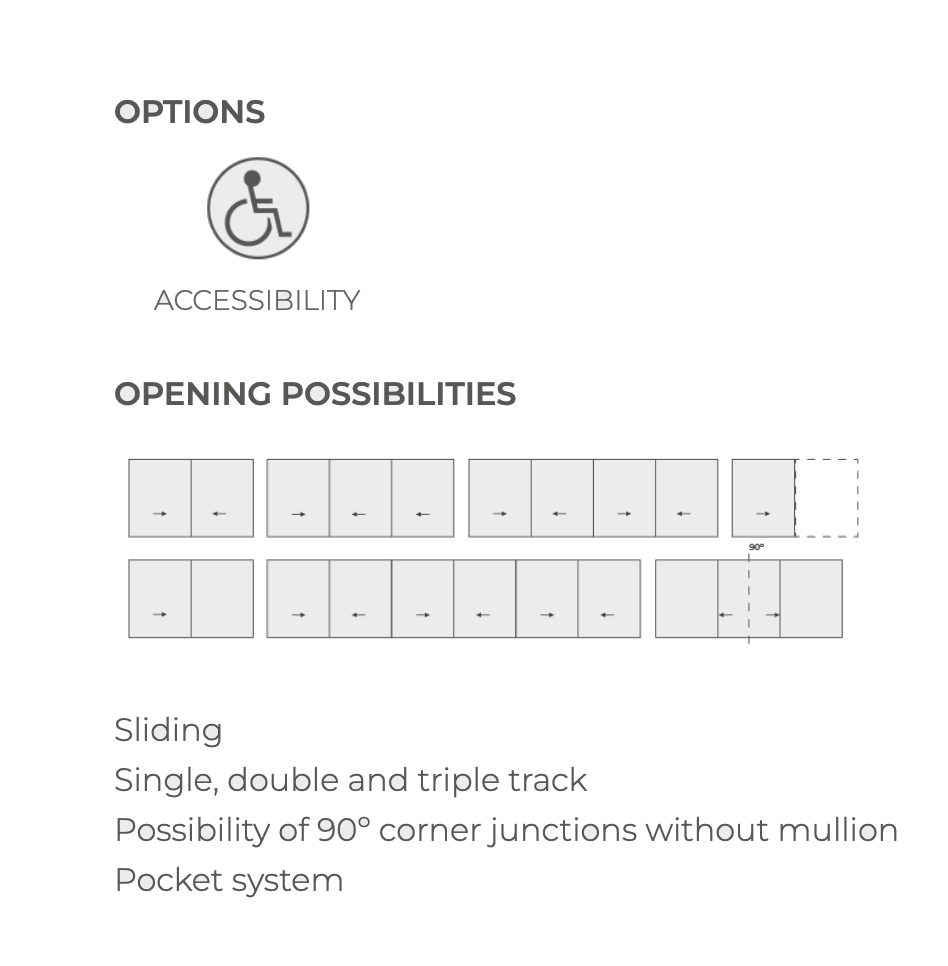

Configuration options
Built around your opening.
Best for: Perimeter-concealed openings and cost-efficient minimalism.
